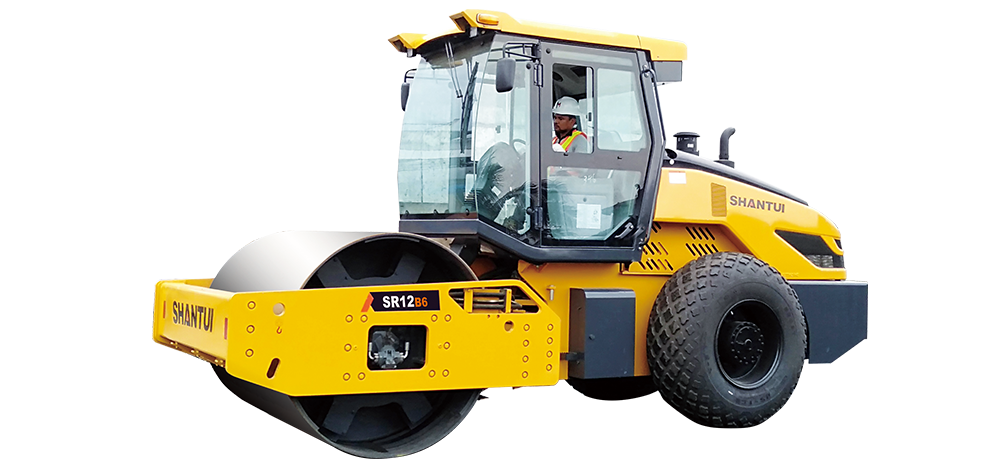

SR12-B6
Single Drum
SR12-B6
  • External dimensions(mm)
    5890*2305*3160
  • Engine brand
    Weichai
  • Power/speed(kW/rpm)
    97.5/2200
  • Characteristic
  • Parameter

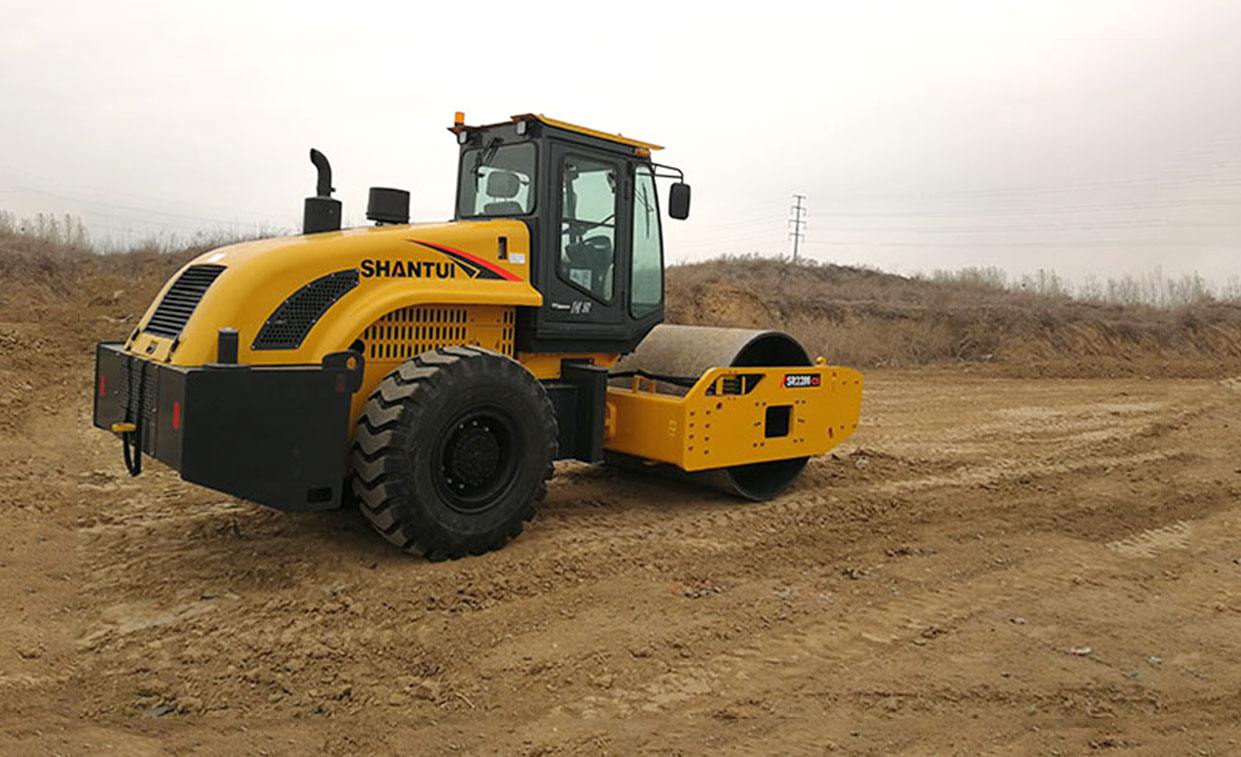

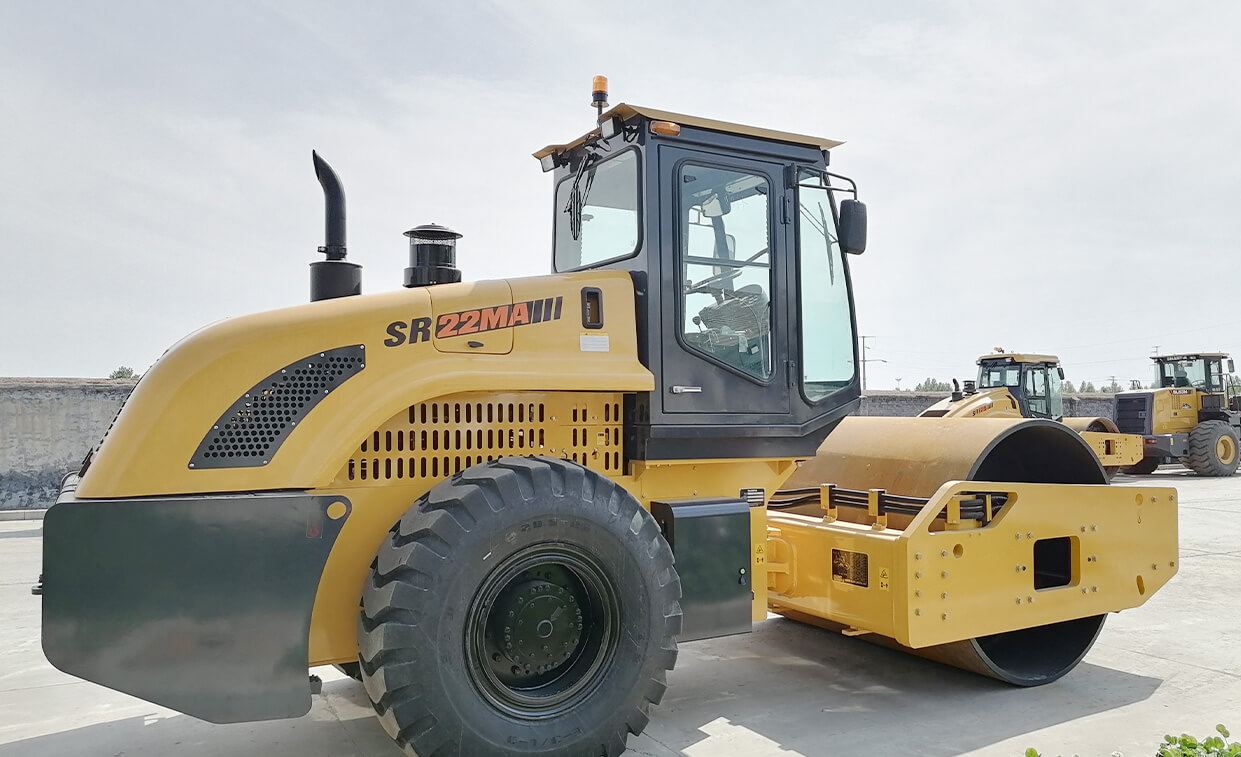

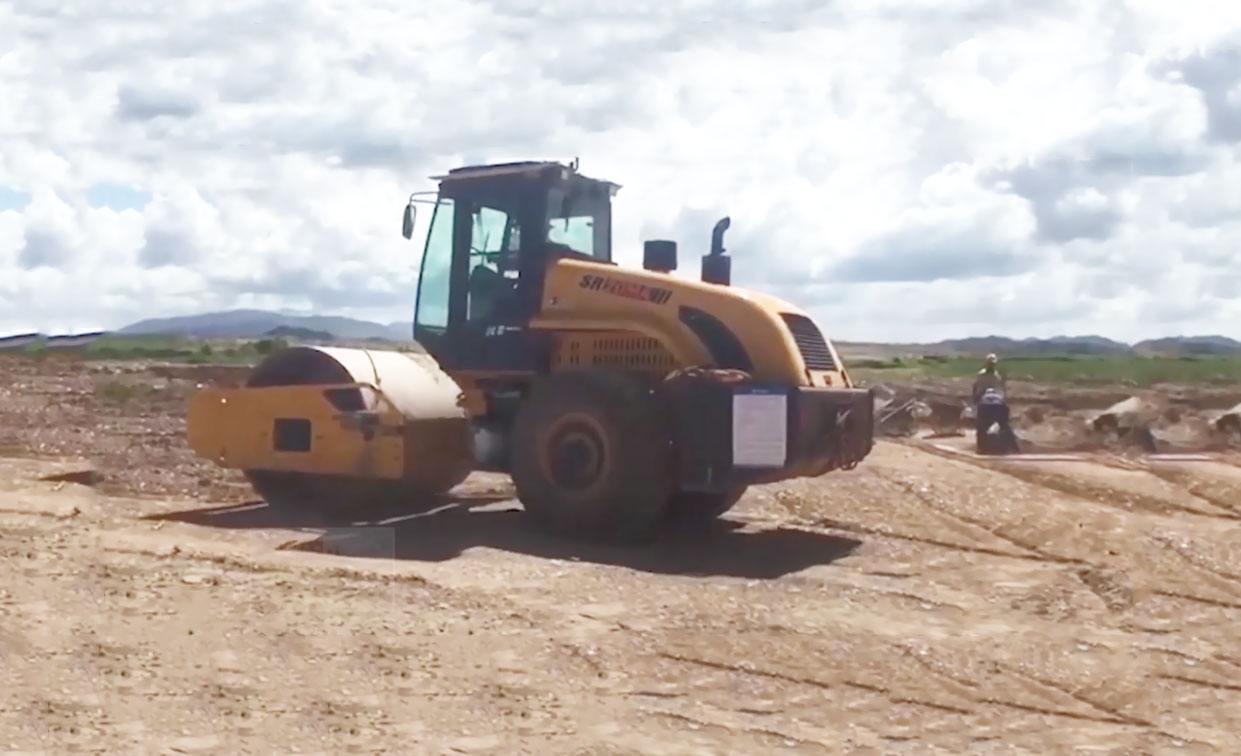

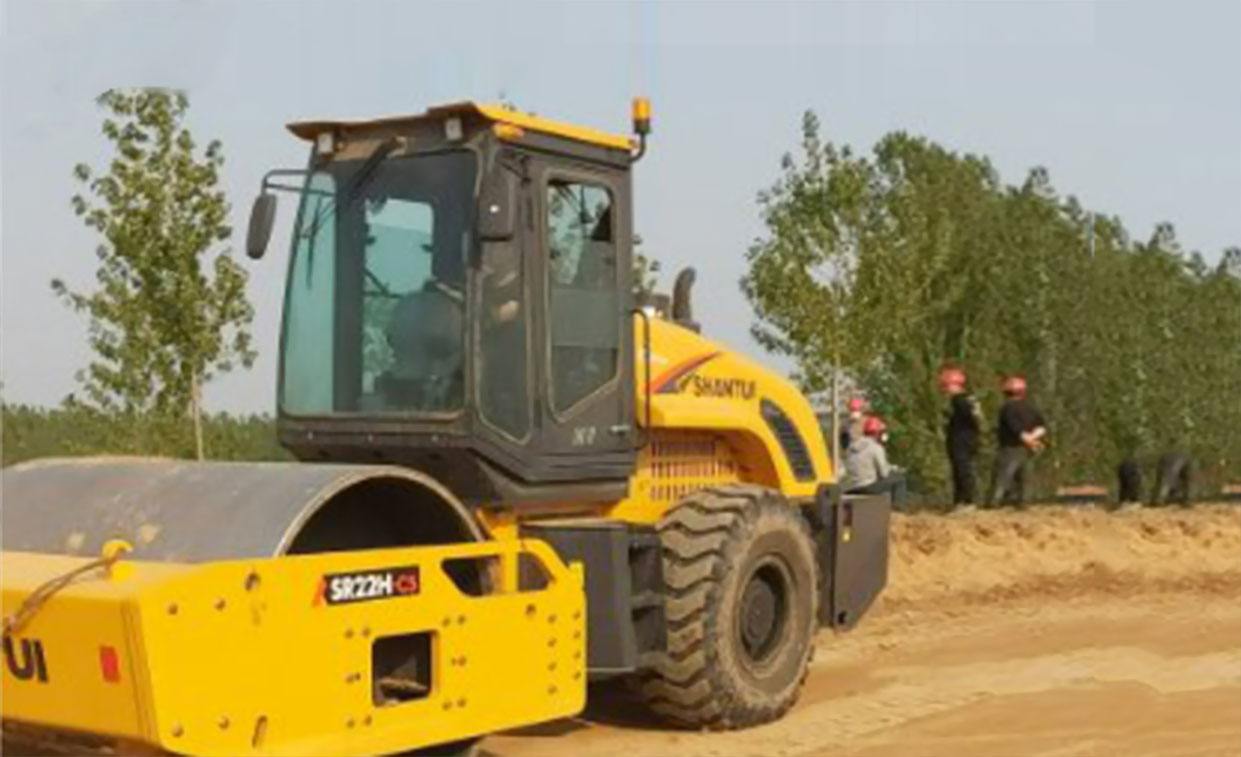

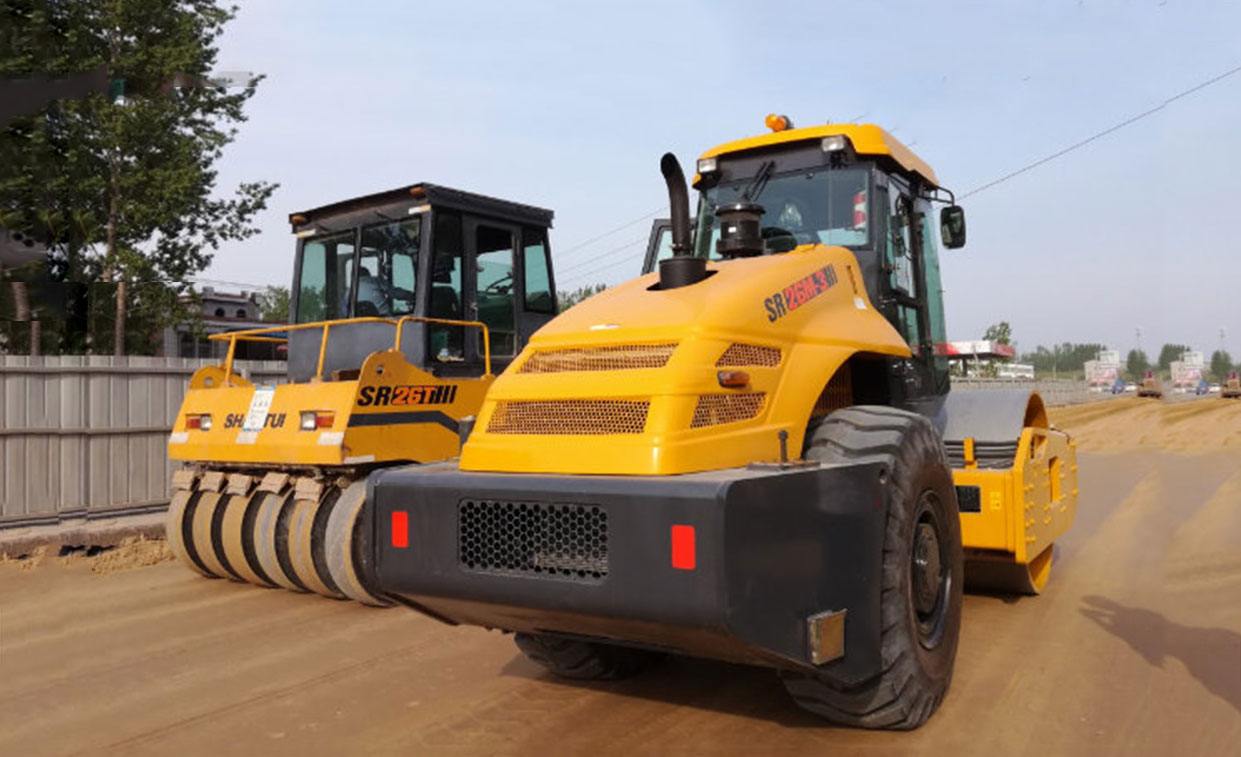

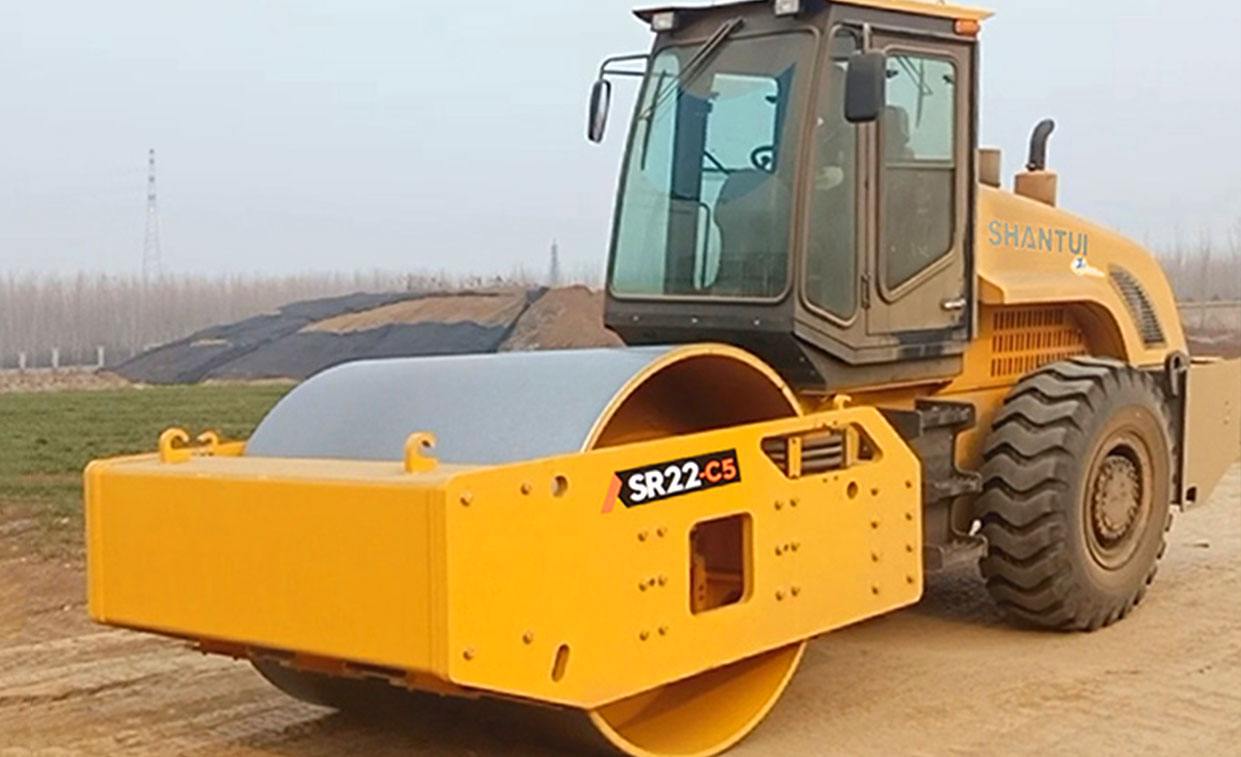

  • Case
  • Inquiry
Characteristic
Configuration selling point
The Weichai WP4 engine for the roller developed by the Group matches well with dual-drive traveling and vibration hydraulic systems for high efficiency, strong climbing ability and high excitation force; the steel drum is of three-in-one design for good compaction effect;
Ease of maintenance and operation comfort
The split-type large space enclosed cab of new appearance without A-pillar guarantees comfortable operation and wide vision; the rotational molded large fuel tank extends the work duration; the fuel filter element, hydraulic filter element, oil drain port and water outlet are led outward, the filter elements are centrally arranged, and the hood has an opening height for easy maintenance;
Adaptability to diverse working conditions
It is suitable for the compaction of the base course, sub-base course and filling of various materials; it can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions
Parameter
Parameter SR12-B6
External dimensions(mm) 5890*2305*3160
Engine brand Weichai
Power/speed(kW/rpm) 97.5/2200
Operating weight(kg) 12300
Front and rear load distribution 7000/5300
Vibration frequency low/high(Hz) 30/36
Minimum turning radius(mm) 6400
Excitation force(kN) 290/200
Amplitude(mm) 2.0/1.0
Gradeability 0.45
Speed(km/h) 0-5.5,0-10
Emissions (Indicated as per China standards) Eu stage II
